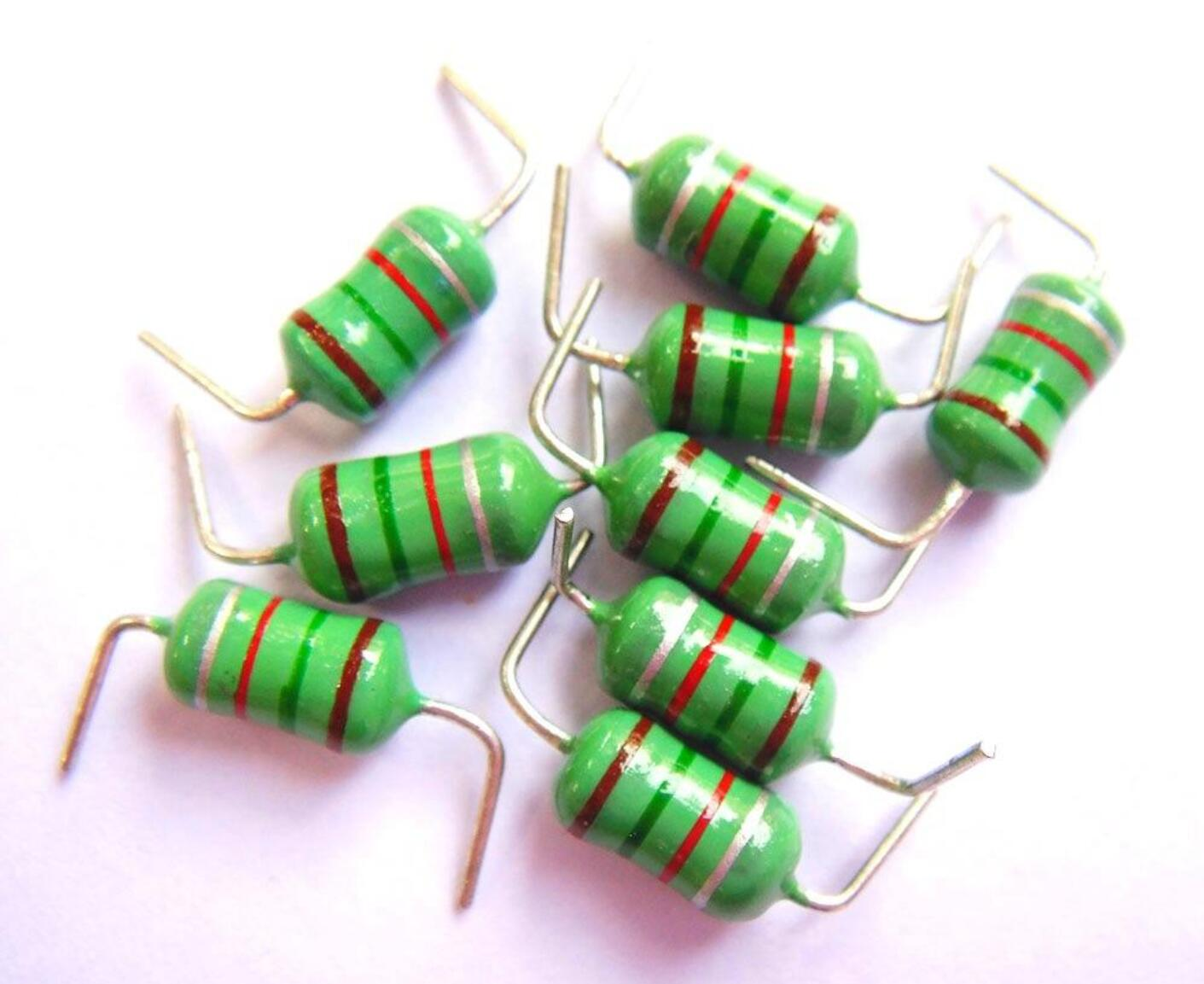

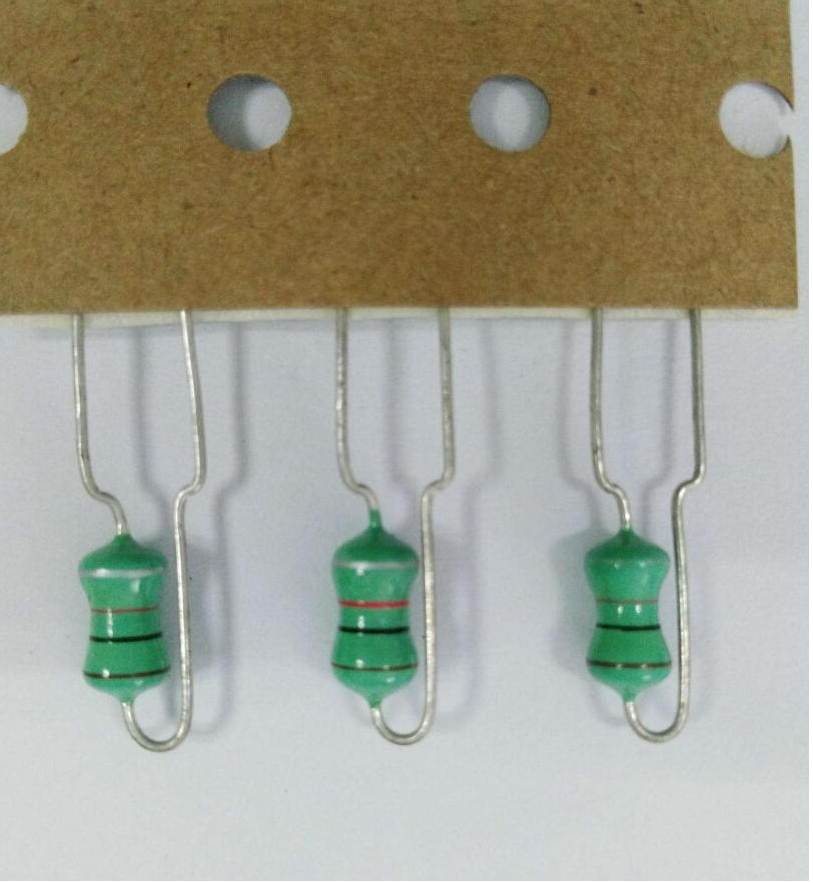

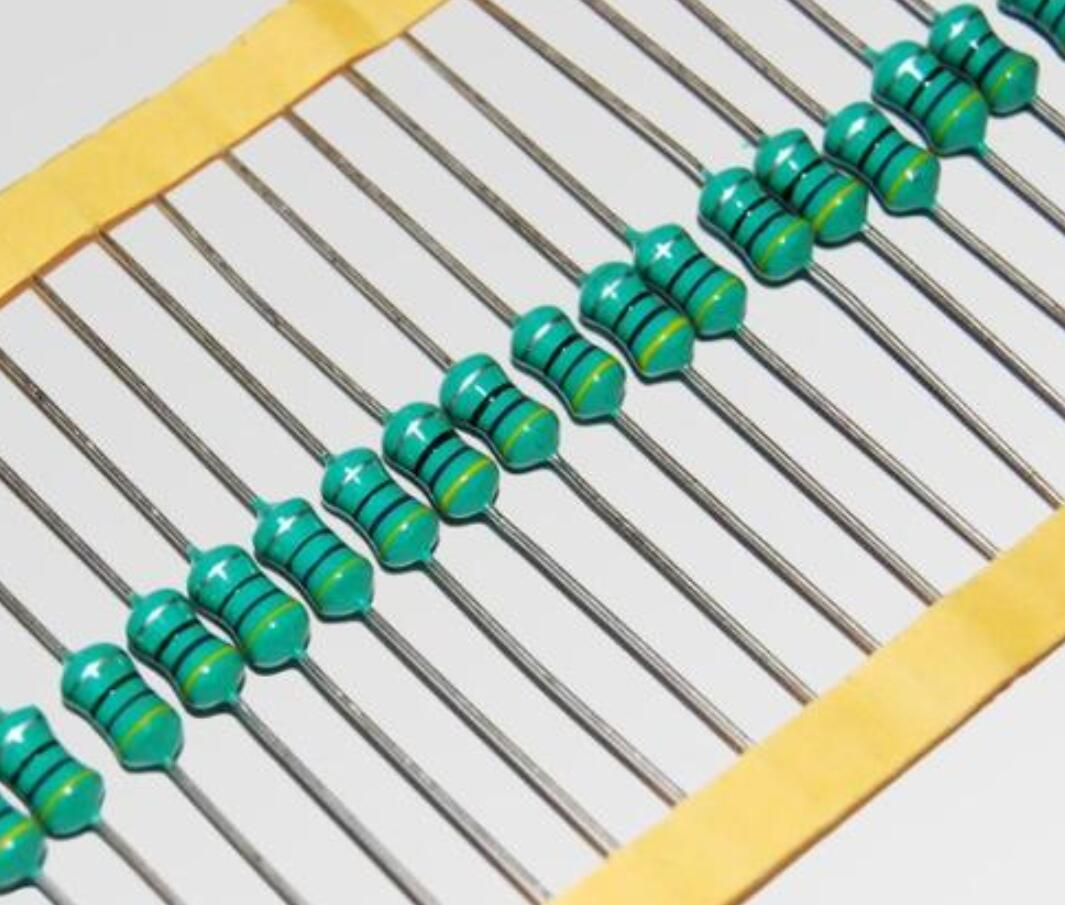

Inductance characteristics of color ring:

Color ring inductor structure is strong, low cost, suitable for automatic production. Special core material, high Q value and self resonant frequency. The outer layer is treated with epoxy resin, high reliability, wide inductance range, automatic plug-in, lead-free environmental protection.

Brown 1, red 2, orange 3, yellow 4, green 5, blue 6, purple 7, gray 8, white 9, black 0, the power of color ring inductance represented by color: Brown * 10 10 ^ (1), 100 (10 ^ 2) red * * 1 k, orange (10 ^ 3), yellow (10 ^ (4) * 10 k, green * 100 k (10 ^ 5), blue * 1 m 10 ^ (6), purple * 10 m (10 ^ 7), Grey * 100 m 10 ^ (8), white * 1000 m 10 ^ (9), black * 1 (10 ^ 0), gold * 0.1 10 ^ (1), silver (10 ^ 2) 0.01

Color ring inductance color represents the level of error: silver 10 gold 5 [%], [%] 1 [%], brown, red, 2 [%] 0.5 [%], green, blue, 0.25 0.1 [%] [%], violet, grey 0.05 [%].
