· Small size and light weight;

· Suitable for reflow welding and wave soldering;

· Stable electrical performance and high reliability;

· Low assembly cost and matching with automatic mounting equipment;

· High mechanical strength and superior high-frequency characteristics. The relationship between patch resistance packaging and power.

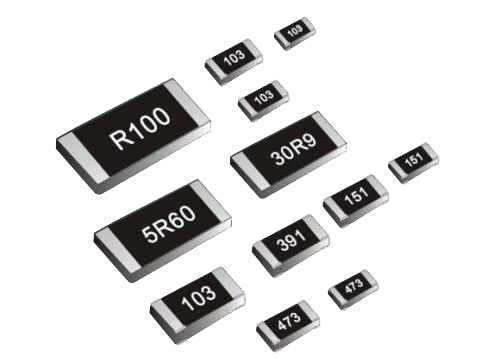

The relationship between package and power of patch resistance is shown in the following table:

Package rated power @ 70°C Maximum operating voltage (V) Imperial system (mil) metric system (mm) Conventional power series Lifting power series

0201 0603 1/20W / 25

0402 1005 1/16W / 50

0603 1608 1/16W 1/10W 50

0805 2012 1/10W 1/8W 150

1206 3216 1/8W 1/4W 200

1210 3225 1/4W 1/3W 200

1812 4832 1/2W / 200

2010 5025 1/2W 3/4W 200

2512 6432 1W / 200

Note: Voltage =√ power x resistance (P=V2/R) or the smaller of the two
